Buckets

Snow/High Capacity Bucket

MODEL	SB72	SB78	SB84	SB96	SB108	SBBOE120	SBBOE132
Overall Bucket Width	73”	79”	85”	97”	109”	121”	133”
Bucket Inside Depth	41 3/4”						44”
Bucket Height	31”						42”
Heaped Capacity (Cubic Yards)	1.33	1.44	1.56	1.78	2	2.22	3.46
Bucket Back Angle (Degrees)	61°						70°
Bucket Back Support Channel	5” x 3” Angle - 1/4” Thickness						Formed Channel
Skin Thickness	3/16” (7 Gauge)
End Cap Thickness	3/16” (7 Gauge)
Under Bucket Skids	5/8” x 4” Skids
Cutting Edge	5/8” x 6” with Holes
Bolt-On Cutting Edge (Optional)	5/8” x 8” (11 Holes)	5/8” x 8” (13 Holes)	5/8” x 8” (13 Holes)	5/8” x 8” (15 Holes)	5/8” x 8” (17 Holes)	*Standard* 5/8” x 8” (19 Holes)	*Standard* 5/8” x 8” (21 Holes)
Approximate Weight (Pounds)	628	659	683	751	810	1098	1505

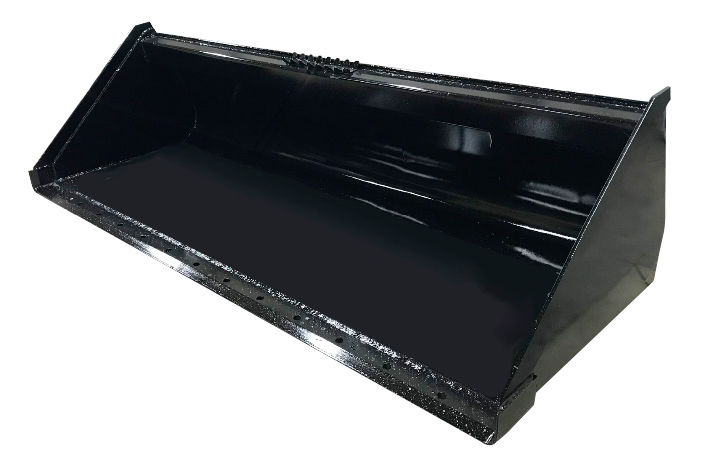

Utility Bucket

MODEL	UB60	UB66	UB72	UB78	UB84
Overall Bucket Width	61”	67”	73”	79”	85”
Bucket Inside Depth	33”				44”
Bucket Height	23”				42”
Heaped Capacity (Cubic Yards)	.65	.71	.78	.87	.91
Bucket Back Angle (Degrees)	71°
Bucket Back Support Channel	5” x 3” Angle - 1/4” Thickness				Formed Channel
Skin Thickness	3/16” (7 Gauge)
End Cap Thickness	3/16” (7 Gauge)
Cutting Edge	5/8” x 6” with Holes
Bolt-On Cutting Edge (Optional)	5/8” x 8” (9 Holes)	5/8” x 8” (11 Holes)	5/8” x 8” (11 Holes)	5/8” x 8” (13 Holes)	5/8” x 8” (13 Holes)
Approximate Weight (Pounds)	423	454	464	505	528
